GSE Step transformer - teplota/hystereze pro 2 ventilátory - 2A

Kód: FC05-202FR
Značka: GSE
7 199 Kč –28 %
Step transformer temp 2fan EU 2d 72dpi
7 199 Kč –28 % 5 199 Kč 4 296,70 Kč bez DPH
Skladem na e-shopu
Můžeme doručit do:
16.8.2022

Detailní informace

Detailní popis produktu

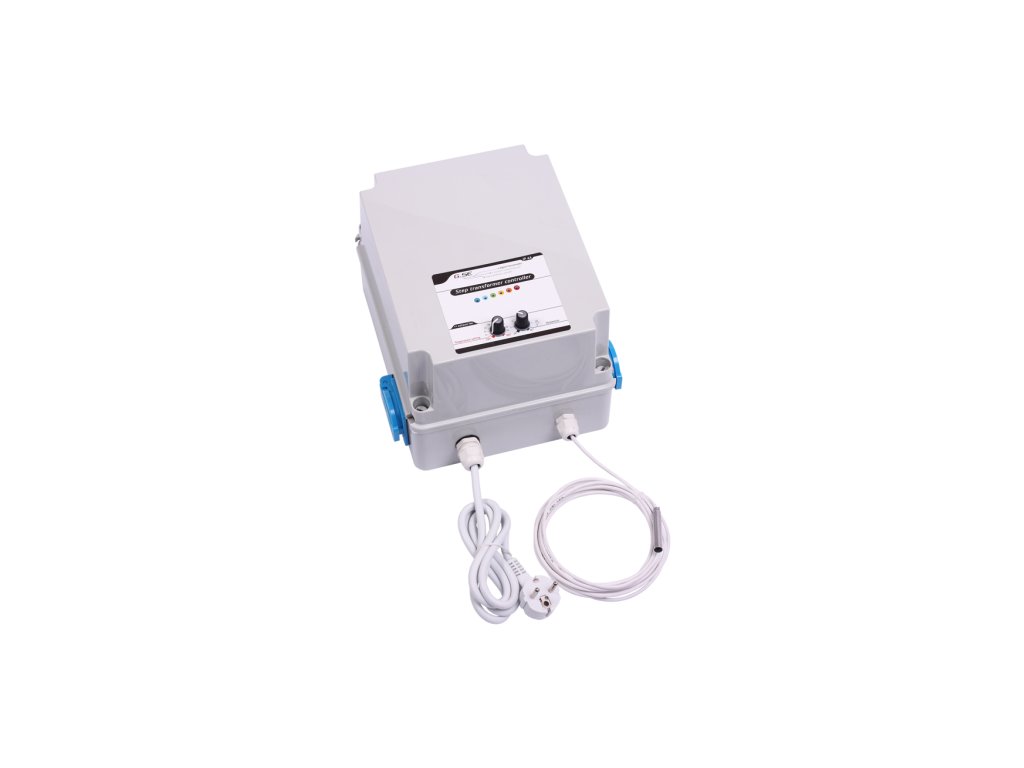

GSE Step transformer 2,5A - Transformátorový krokový regulátor na 2 ventilatory

The step transformer controller have the special characteristic that the ventilators make no noise "hum" in the lower rotation. The step transformer control the fan speed from self 6-step up/down according the temperature. Temperature as Hysteresis (sensitivity) can be set on two knob's. The intake fan runs 1step behind the exhaust fan to prevent odour from escaping.

Sample: Exhaust fan runs on step1, intake fan runs on step0 (stop), when the exhaust fan switch to step2 the intake fan switch to step1 etc... until the exhaust fan reach the max. step6 the intake fan will run on step5.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 8meters.

Sizes and technical data's:
Case: WxHxD = 200x250x180mm
Controller: WxHxD = 265x300x205mm
Designed for: 2.5A (for 2fans)
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class: IP54

Settings range:
Temperature: 20C° - 30C°
Temperature hysteresis: 2-8C°

Doplňkové parametry

Kategorie: GSE
Připojení: 1x Zásuvka 230V
Regulace otáček podle: Hystereze, Teploty
Výstupy: 2x
